We have developed a revolutionized tooling which has the capabilities to execute the repairs to close tolerances as stipulated in the engine manufacturer’s manual.

Case Study of Repair of MAK-1 8CM32C Engine Crankshaft In Burkina Faso, West Africa

The major details of the crankshaft of the MAK-1 8CM32C Engine are as follows:

i) Due to the repeated failure of bearings, it was decided by the client to get an audit of the crankshaft for all the major parameters. RA Power Solutions deputed two (2) technicians along with the onsite crankshaft grinding machine from New Delhi to Burkina Faso. During the initial inspection, the following was checked and observed.

a) The dimensional inspection of the crankpins was conducted, and excessive ovality was observed in all the crankpins. The readings for all the crankpins are pasted below:

b) As protocol, all the crankpins were checked for hardness by a portable hardness tester and were found within limits.

c) MPI was also undertaken to check the cracks, and no abnormality was observed.

ii) The grinding of all the eight (8) crankpins was executed onsite by our technicians. The first step size and tolerance of 0.02/0.03 MM were maintained.

In Place Machining of Crankshaft of MAK-1 8CM32C Engine

RA Power Solutions has been successfully executing the repair of high-diameter crankshafts up to 700 mm. We also specialize in onsite grinding of small-diameter crankpins with a bearing width of the crankpin as low as 50 mm to execute onsite such types of complex crankshaft repairs onsite. We have developed special-purpose onsite crankshaft machining equipment by which the repairs can be executed. We execute repairs for Marine, industrial, stationary power, and offshore sectors all over the world.

Our technicians are available to travel worldwide on short notice. Additionally, several of our technicians hold valid US visas, enabling them to travel to South America, the Caribbean, and other destinations as needed.

At RA Power Solutions, we provide specialized crankshaft grinding machines, onsite crankshaft grinding repair, insitu crankshaft grinding, Onsite crankshaft grinding machines,  insitu crankshaft grinding machines, crankpin bearings, metal stitching, metal locking, engine block repair, crack repair by metal stitching, cast iron crack repair, crankpin polishing, inspection of crankshaft, crankshaft inspection, rebabbitting bearing, babbitt white metal, engine overhauling, grinding of crankpin, connecting rod, and turbine shaft bearing services worldwide, including South Africa, Singapore, Greece, Dubai, Iraq, Iran, Malaysia, Colombia, and Brazil.

For more information regarding crankshaft grinding services, please contact us at rajshahani@rapowersolutions.com or info@rapowersolutions.com or call us at +91 9582647131 or +91 9810012383.

The post In Place Crankshaft Machining and Grinding of MAK-1 8CM32C Engine In Burkina Faso , West Africa appeared first on Crankshaft Grinding Repair.

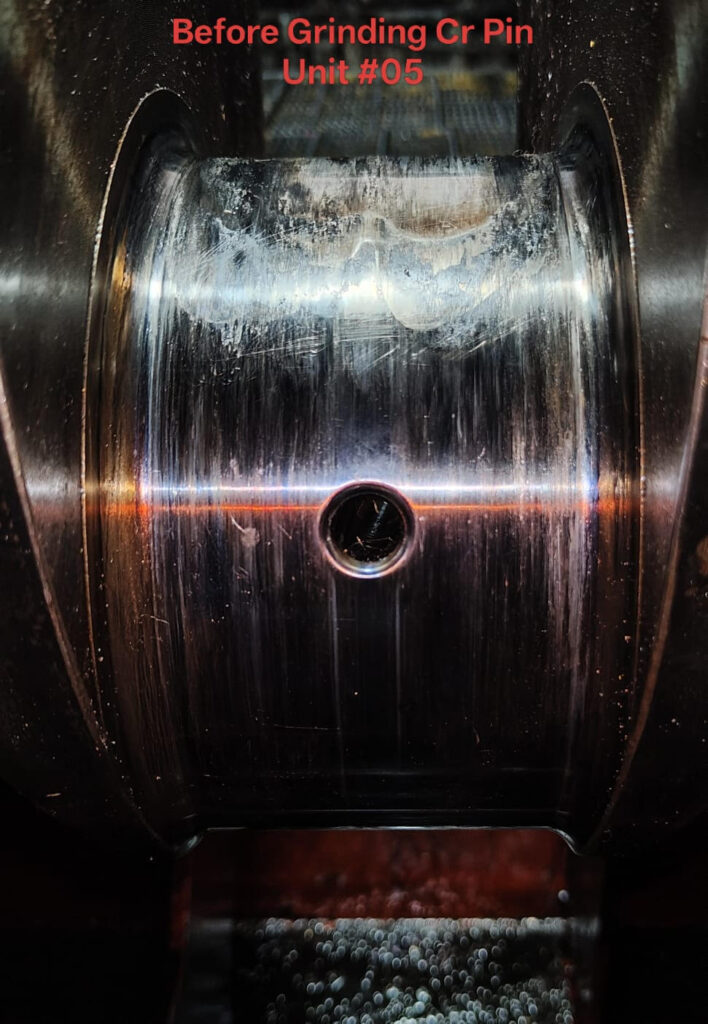

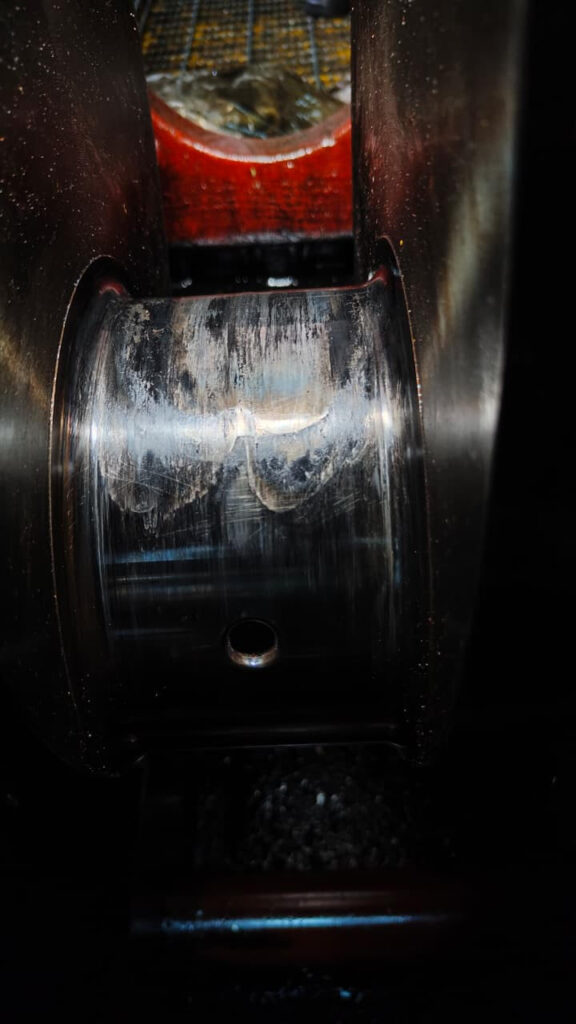

Damaged Crankpin of Daihatsu 6DK-20	Daihatsu 6DK-20 Crankpin Before Grinding

On the visual inspection, the crankpin number #05 was observed to be damaged, and on the dimensional inspection, an ovality of 0.46 mm was observed. The readings are provided below:

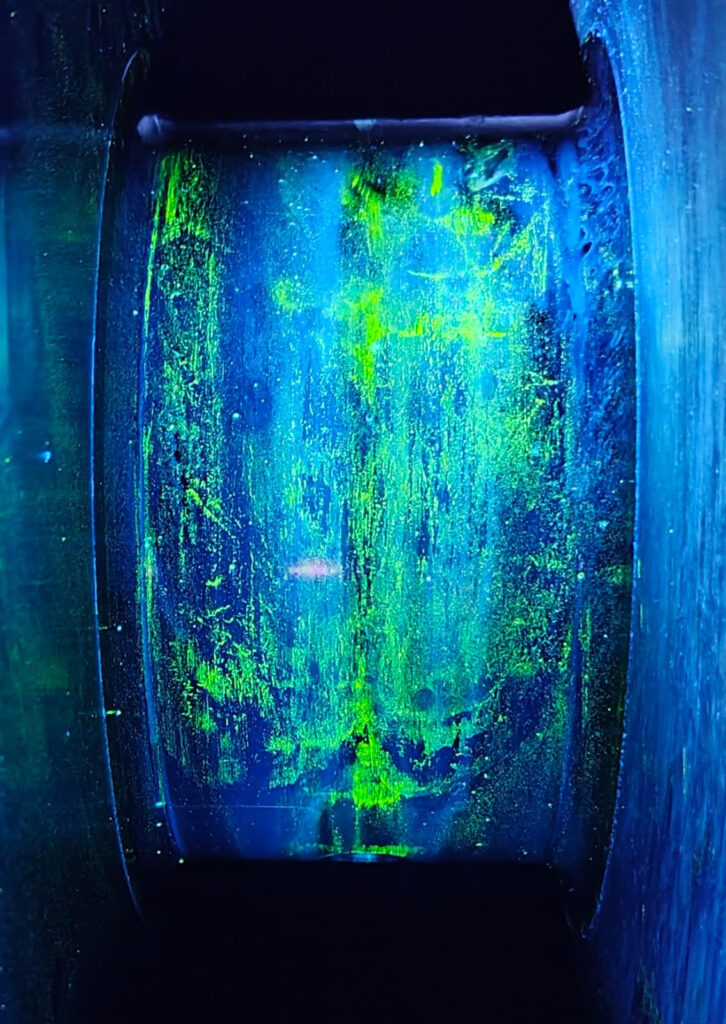

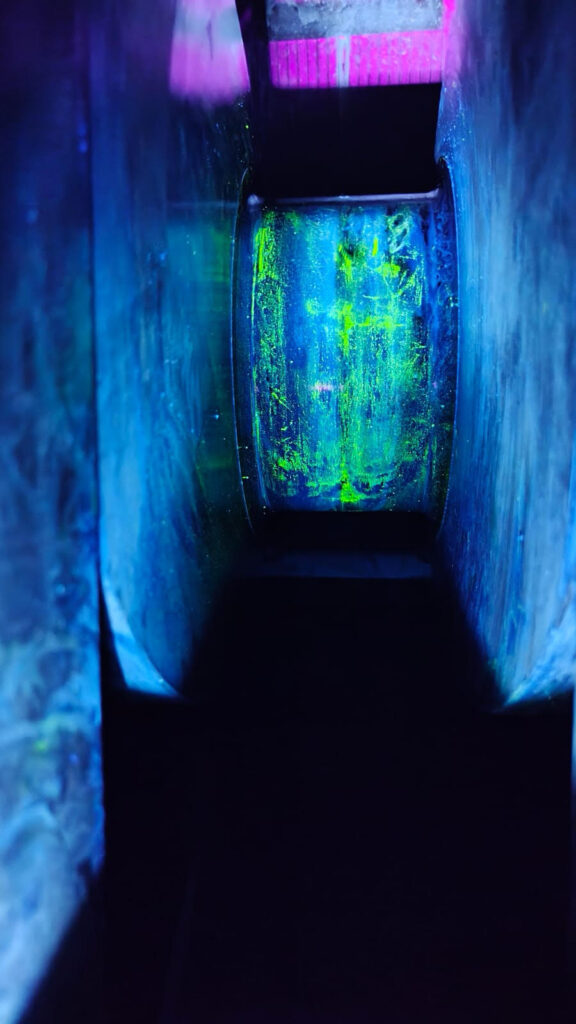

Crack Detection through MPI	Crankshaft Inspection of Daihatsu 6DK-20

After the pre-inspection of crankpin number 05 of the Daihatsu 6DK-20, as per the protocol, which included dimensional inspection, hardness testing, and Magnetic Particle Inspection (MPI) for crack detection, grinding was initiated, since all parameters were found to be within acceptable limits. The Crankpin Number #05 was undersized by 1.50 MM.

Final dimensions are provided below:

We have to reduce the diameter by 1.5 mm due to deep bearing line marks.

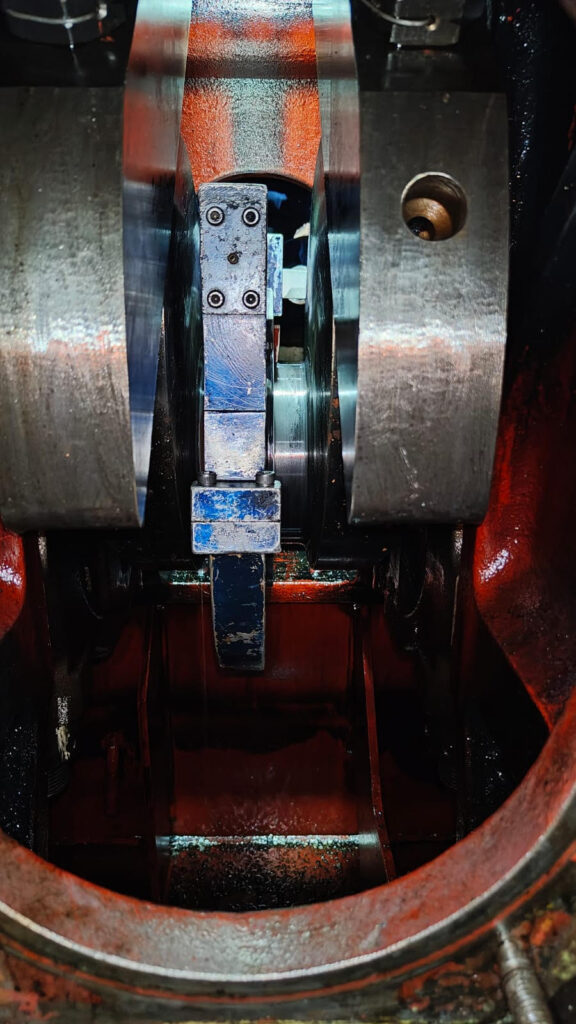

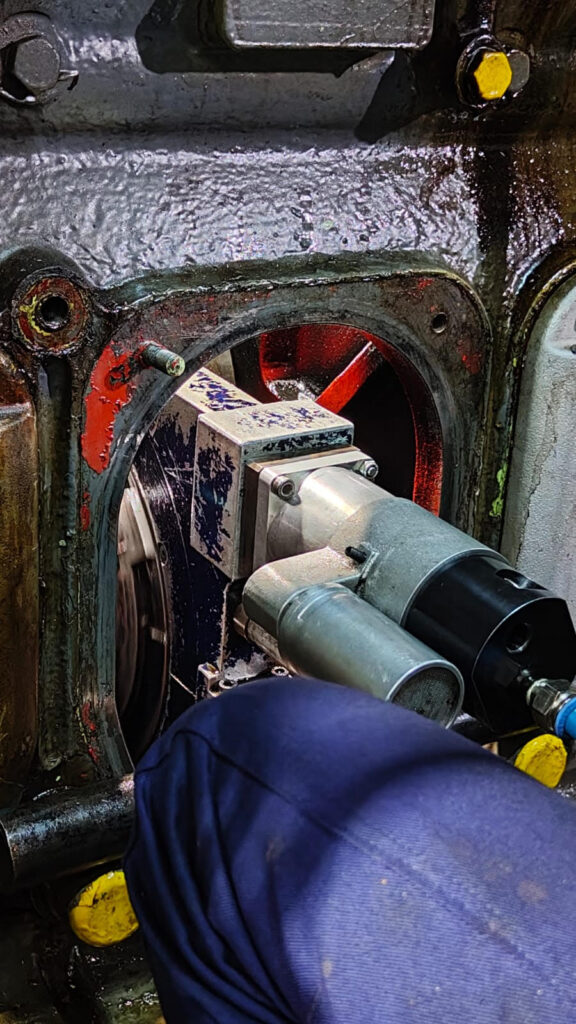

In situ crankshaft grinding of Daihatsu 6DK-20 engine	Daihatsu 6DK-20 Engine Machining Onsite

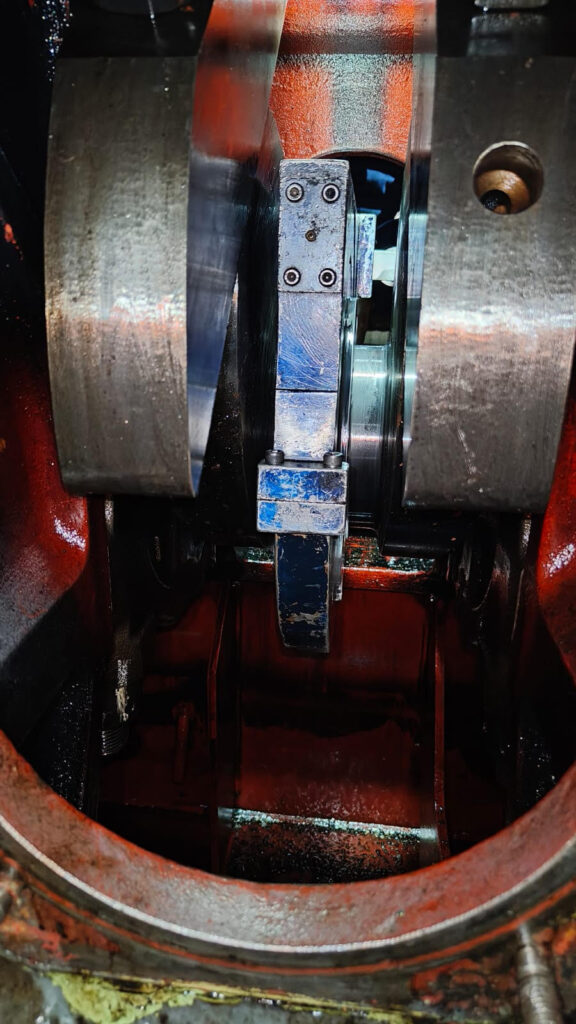

Insitu Crankshaft Grinding and Polishing of Daihatsu 6DK-20	Crankshaft Repairs Under process

Supply Of Undersized Bearings For Daihatsu 6DK-20

Our technicians carried with them two (2) pairs each of 1.00 mm and 1.50 mm undersized crankpin bearings. The 1.50 mm bearings were fitted, and the engine was put back into operation within a few hours after the crankshaft repair of the Daihatsu 6DK-20 was executed. We maintain a large stock of crankpin bearings for the Daihatsu 6DK-20, as well as for other popular engine makes and models.

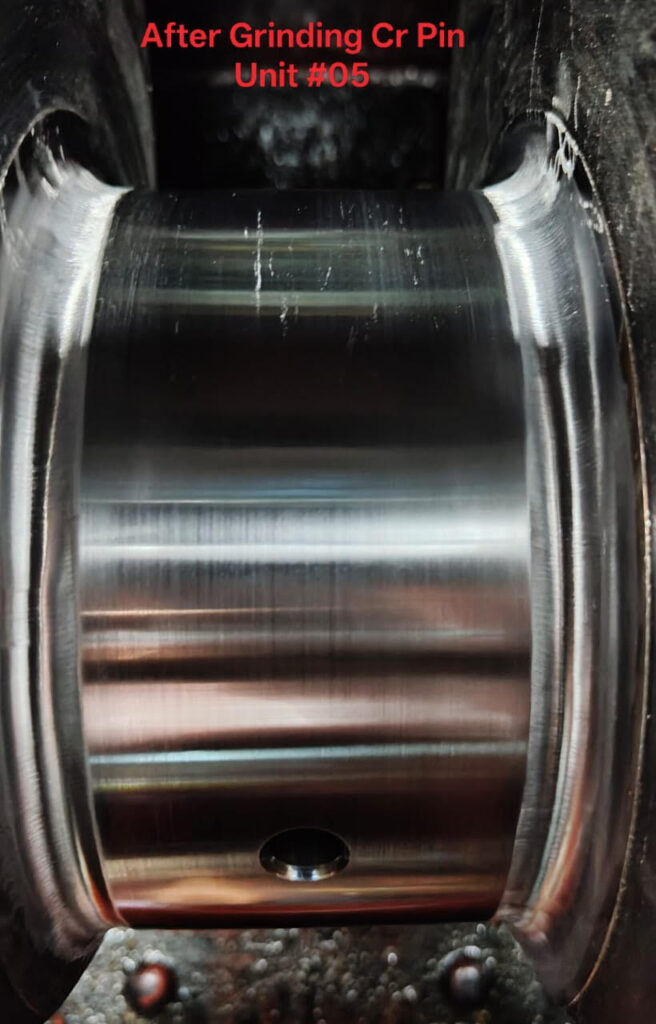

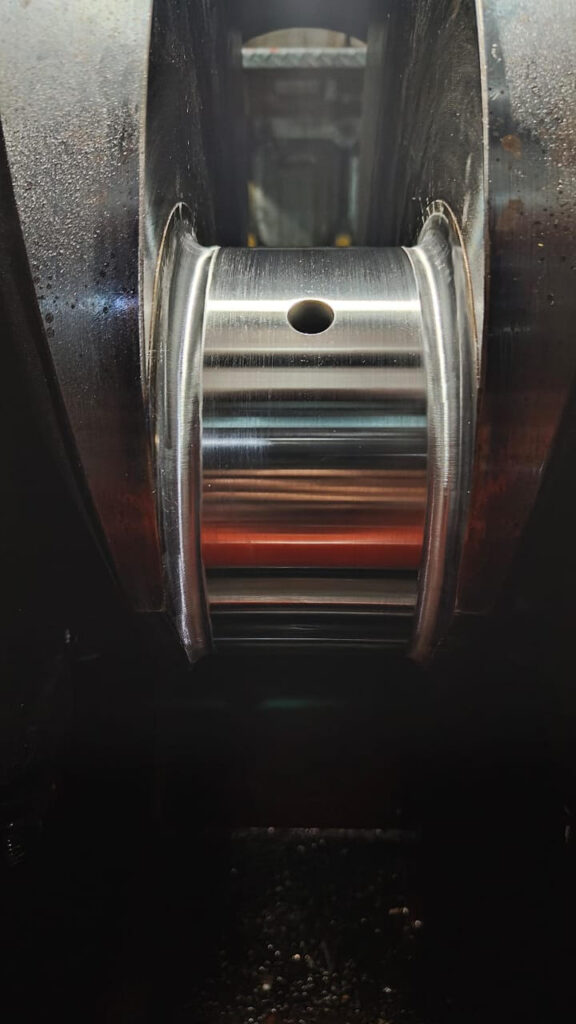

After Grinding Crankpin of Daihatsu 6DK-20 engine	Crankpin after Grinding and polishing Daihatsu 6DK-20 engine

RA Power Solutions, with experience of more than 45 years, extends onsite crankshaft grinding services to leading shipping companies, power plants, and heavy industries all over the world.

We have a team of trained technicians available 24/7 and can be deputed on short notice. Some of our technicians also have valid US VISA and can fly to South America, Caribbean countries, etc.

For more information regarding insitu crankshaft grinding, crankshaft grinding services, please contact us at rajshahani@rapowersolutions.com or info@rapowersolutions.com or call us at +91 9582647131 or +91 9810012383.

The post Daihatsu 6DK-20 Onsite Crankshaft Grinding appeared first on Crankshaft Grinding Repair.

Action taken by RA Power Solutions to repair the crankshaft of MAK 8CM32C :

RA Power Solutions deputed two technicians with an onsite crankshaft grinding machine, instruments, and necessary consumables.

Upon arrival, they inspected the crankshaft of a damaged diesel generating set of MAK 8CM32C.

The details of the job are as follows:

The dimensional inspection of the damaged and seized crankpin number #7 was conducted.

• Dimensional checks revealed:

Minimum Diameter: 279.68 mm

Maximum Diameter: 280.00 mm

Ovality: 0.32 mm

Apart from an ovality of 0.32 mm, the crankpin exhibited deep scoring marks and a rough surface, which was developed due to seizure of the bearing.

• The hardness was checked and showed marginally higher values in certain spots.
• MPI for crack detection was undertaken and revealed no cracks or abnormalities.
• The remaining crankpins were also inspected for taper and ovality and all within acceptable limits.

Action taken for the successful repair of the crankshaft of MAK 8CM32C :

i) The grinding of crankpin number #7 was ground to an undersize of 3 mm; this was done as the deep line marks were present at every step.
They got cleared only after grinding the crankpin to 3 mm undersize, resulting in a final diameter of 277.00 mm.

ii) The remaining crankpins were polished to improve surface finish and reduce the ovality by 0.01/0.02 mm.

The above job of crankshaft repair of MAK 8CM32C has been executed strictly as per the requirements of the manufacturers and the tolerance specified.

Successful Worldwide Onsite Crankshaft Repairs

RA Power Solutions has successfully executed onsite crankshaft grinding and repair of MAK, MAN, Daihatsu, and Yanmar engines in over 100+ countries worldwide. Our services are trusted across India, UAE, Singapore, Colombia, Indonesia, Malaysia, Bangladesh, Saudi Arabia, Qatar, Kenya, Nigeria, Greece, Turkey, Spain, the UK, USA, Brazil, and many more.

For expert onsite crankshaft grinding of MAK 8CM32C engine repair and other crankshaft repair services, contact RA Power Solutions today.

Our team is available 24/7 to provide prompt support worldwide, ensuring high-quality, reliable, and cost-effective solutions.

Call us at +91-9582647131 or email info@rapowersolutions.com.

The post MAK 8CM32C | Onsite Crankshaft Grinding | RA Power Solutions | 45 Years Experience appeared first on Crankshaft Grinding Repair.

The details of the crankshaft of Daihatsu 6DL-16 are as follows:

Inspection Conducted by RA Power Solutions technicians and observations:

• On arrival, the inspection in detail was conducted by our technicians.
• It was informed that a local company based in Dubai was engaged to undertake the repair of two crankpins that were damaged.
• The crankshaft repair company based in Dubai took eight days to repair the two crankpins and the bearings failed twice within engine operation of 10 minutes.
• RA Power Solutions technicians did the dimensional inspection of crankpins. They were surprised to note that the crankpins after grinding by a Dubai-based company had ovality up to 0.12 mm against the maximum permissible limit of 0.03 mm by Daihatsu.
• The readings observed by our technicians before grinding are mentioned below:

                  SIZE OF CR JOURNAL                                     SIZES IN MM

• On further investigation, RA Power Solutions was informed that the company from Dubai had no specialized equipment/ tooling to undertake the grinding of Daihatsu 6DL-16 having a standard diameter of 120 mm and crankpin bearing width of only 64 mm. They did it by hand and were not able to control the ovality.

Action taken by RA Power Solutions Technicians

RA Power Solutions technicians after initial inspection for dimensions, hardness, MPI for crack detection, etc undertook the grinding of crankpins 1 & 4 and undersized both the crankpins by 1.0 mm.

The Final report after grinding is pasted below:

                     SIZE OF CR JOURNAL                           SIZES IN MM

It can be seen from the above readings that the taper & ovality were controlled within 0.02 mm. The engine was commissioned in the presence of our technicians and was operating satisfactorily.

Achievement by RA Power Solutions

The grinding of the crankpin of Daihatsu 6DL-16 needs specially designed, compact onsite crankshaft grinding equipment which RA Power Solutions has developed. This equipment is manufactured in two parts and is inserted from the inspection window of the engine block.

In this case, the crankpin diameter is only 120 mm, and the crankpin bearing width of 64 mm, we have designed the equipment that can undertake grinding/ polishing of the crankpin without removing it from the entablature.

We have been extending our onsite services all over the world for the last forty-three years and regularly work on high RPM engines like Daihatsu, Yanmar, Volvo, MAN B&W,  Caterpillar, Cummins, Deutz Engines, etc.

RA Power Solutions is ISO 9001:2015 (Quality Management System) & ISO 14001:2015 (Environmental Management System) certified approved company.

We have been regularly executing the on-site crankshaft repairs and crankshaft grinding in Dubai, Oman, Saudi Arabia, Qatar, Abu Dhabi, Sharjah, Ajman, Umm Al-Quwain, and Fujairah, Bahrain, Kuwait, Iraq, Antigua and Barbuda, Belize, Dominica, Dominican Republic, Grenada, Guyana, Haiti, Jamaica, Saint Kitts and Nevis, Saint Lucia, Saint Vincent and the Grenadines, Trinidad, and Tobago, etc.

For more details on the Repair of the engine and onsite crankshaft replacement, please email us at rajshahani@rapowersolutions.com, or info@rapowersolutions.com, or call us at +91 9582647131 or +91 9810012383.

The post Daihatsu 6dl 16 Onsite Crankshaft Grinding Dubai appeared first on Crankshaft Grinding Repair.

We have been extending onsite crankshaft repair services for medium & heavy equipment for over four decades and the services are extended all over the world. We also execute repairs of the crankshaft on a moving vessel and there is no requirement to hold it.

Advantages of Crankshaft Repair Services offered by RA Power Solutions

We are mentioning below a few of the advantages of getting crankshaft repair executed by RA Power Solutions.

• We believe that the crankshaft is a piece of art and even for the heavy crankshafts the tolerance in terms of taper and ovality ranges between 20 to 50 microns which is very little and requires experience, special skill, and dedicated latest design of equipment to maintain.
• A Power Solutions is the only manufacturer of the onsite crankshaft grinding machine in the world and has supplied over 70 machines which are in operation by leading shipping companies, Power Plants repair workshops, etc.
• Our designing and manufacturing of onsite crankshaft grinding machines for crankshaft repair can be easily modified according to the site requirements.
• Difficult and serious damage to the crankshaft is successfully repaired as we have in-house capability of modifying our equipment as per the site requirement and condition.
• Most of the companies based in Europe, and the UK undertaking crankshaft repair cannot successfully execute the repair of crankshaft radius fillet which is damaged or worn out due to accident. They always recommended either removing the crankshaft from the engine block and sending it to the workshop or rejecting it.
• We have onsite crankshaft grinding equipment by which repair of the crankshaft can be successfully executed despite damage to the radius fillet of both sides. We have a record of more than thousands of crankshaft repair cases where the radius fillet was damaged.
• We have facilities and modern equipment to undertake non-destructive tests including hardness checks, crack detection checks by MPI dimensions checks, etc.

Availability of trained & experienced technicians for crankshaft repair

• All our technicians are trained in our in-house training school near New Delhi, the capital of India.
• The technicians are trained on dummy crankshafts under senior supervision and have experience of 30 and 40 years in crankshaft repair.
• Our mission is to create awareness and make it understandable to our clients all over the world that it is not a difficult task to repair the crankshaft, which few companies have been propagating and making a monopoly by charging exorbitant prices.

Low cost of crankshaft repair offered by RA Power Solutions

• We are the cheapest in the world executing crankshaft repair at minimum cost.
• We don’t charge separately for NDT tests, cost for repair of radius fillet, out-of-station allowance, etc.
• We have successfully executed damaged crankshaft repair of MAN B&W, Yanmar, Daihatsu, Wartsila, Ruston & Hornsby Engine, etc.

For more information regarding crankshaft repair services, please email us at rajshahani@rapowersolutions.com, or info@rapowersolutions.com, or call us at +91 9582647131 or +91 9810012383.

The post Crankshaft Repair Services by RA Power Solutions appeared first on Crankshaft Grinding Repair.

The Main Advantage Of Appointing RA Power Solutions For Crankshaft Grinding & Crankshaft Repair

• Experience of more than 41 years in repair, grinding, and polishing of crankshafts, cylindrical shafts, turbines, rotors, alternator shafts, etc.
• All our technicians are well experienced.
• The crankshaft grinding machine is developed and manufactured by us and in case of limited availability of space, the necessary modification in the equipment can be done on short notice. This is of great advantage in the case of engine crankshafts where the bearing width is less. We modify the machine according to the bearing width dimensions.
• The on site crankshaft grinding machine is lightweight and can be taken to any site in the world as an accompanying baggage. There is no need to book it as cargo involves customs formalities, clearance, etc which is expensive and time-consuming.
• Equipment is Pneumatically operated and the client has to only arrange for the Air.
• We have the instruments for checking hardness, crack detection by the latest high-intensity magnaflux torch, Mitutoyo instruments to check dimensions, surface finish electronic tester, etc to undertake the inspection of the crankshaft before and after the grinding is undertaken.
• Our technicians are qualified to undertake non-destructive magnetic particle tests and other examinations. Calibrate instruments are used for inspection purposes.
• We have in house training school where the technicians are trained and briefed about day-to-day development in the field of crankshaft repair with the availability of modern equipment.
• Use of the latest technology equipment and process, and having experienced technicians has made us the leader in the field of crankshaft grinding and crankshaft repair. We are respected for our sincerity and honest approach.

We are serving all over the world and have reputed companies as our reference in more than 103 countries all over the world.

For your requirements regarding the on site crankshaft grinding, please email us at rajshahani@rapowersolutions.com, or info@rapowersolutions.com, or call us at +91 9582647131 or +91 9810012383.
