The Rolls-Royce crankshaft was reportedly damaged due to an accident.

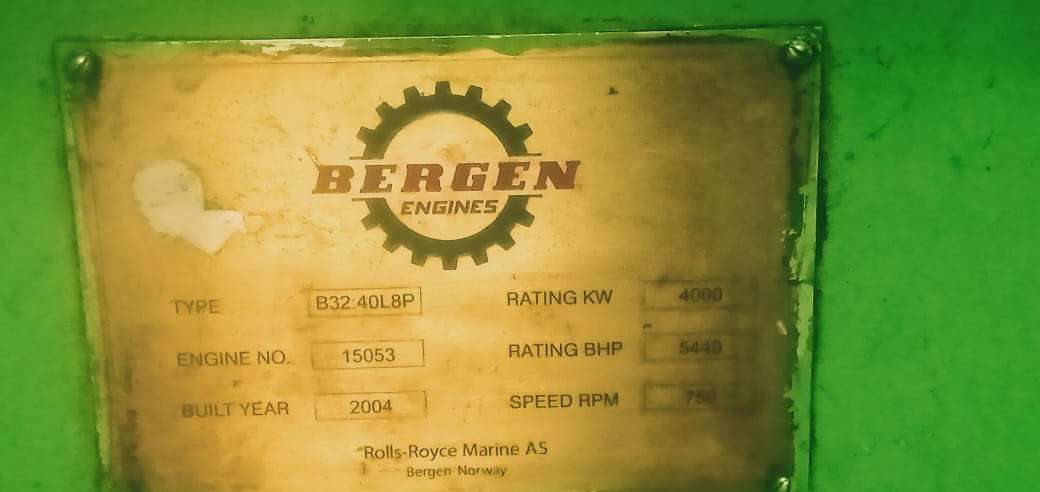

The Rolls-Royce (Bergen B32:40L8P) is installed on a vessel as the main engine. The vessel was at the outer anchorage of Mumbai Port.
The details of the crankshaft and engine are as follows:
| S. No. | Crankpin Details | |
| 1 | Engine Make | Rolls-Royce |
| 2 | Engine Model | Bergen B32:40L8P |
| 3 | Crankpin Diameter Standard | 270.00 MM |
| 4 | Crankpin Bearing Width | 110.00 MM |
| 5 | Grinding of Crankpin Number | #06 |
| 6 | Place of Execution of Grinding of Crankpin | Mumbai |
| 7 | Name of Shipping Company | Reputed Company from Mumbai |
| 8 | Date Of Execution | 27.04.2026 to 03.05.2026 |

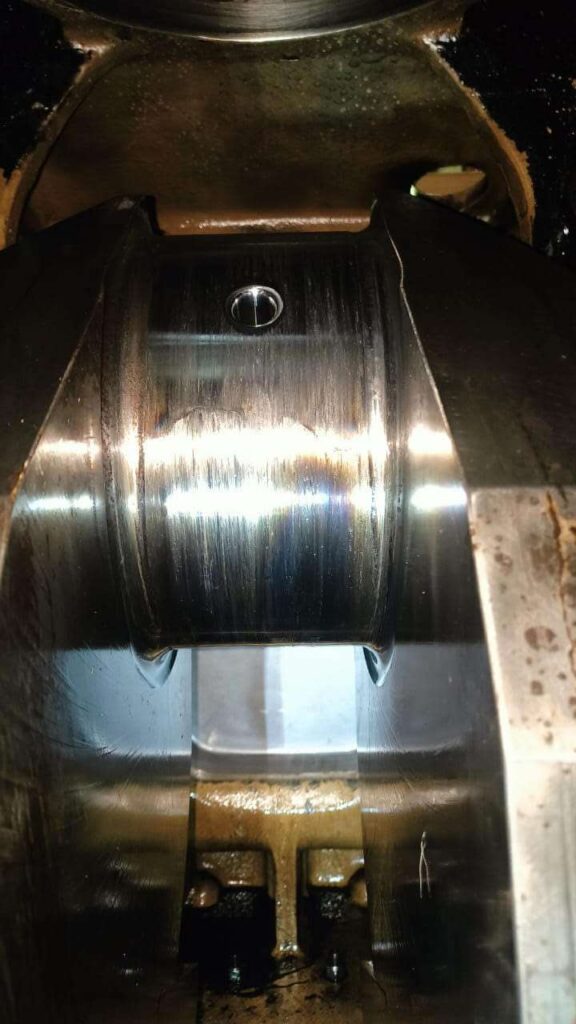

Our two (2) technicians with onsite crankshaft grinding machine and measuring equipment boarded the vessel at short notice. A detailed inspection was undertaken, and crankpin number #06 was found damaged.

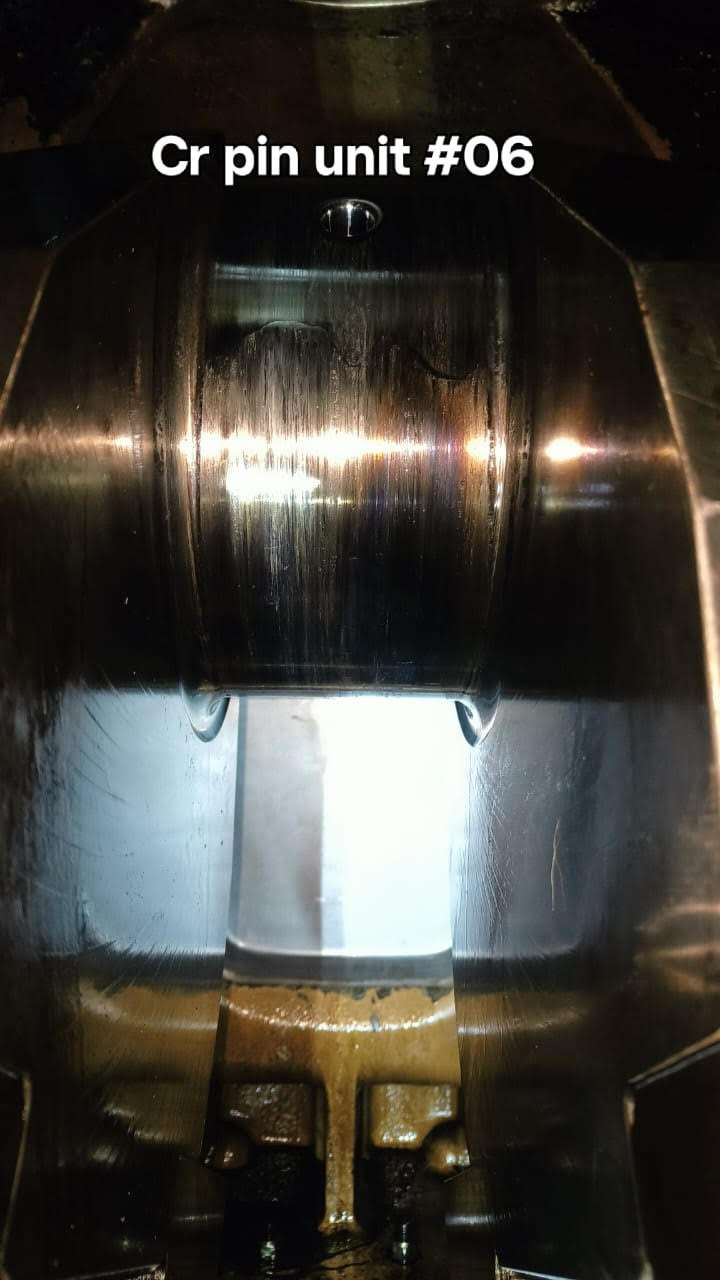

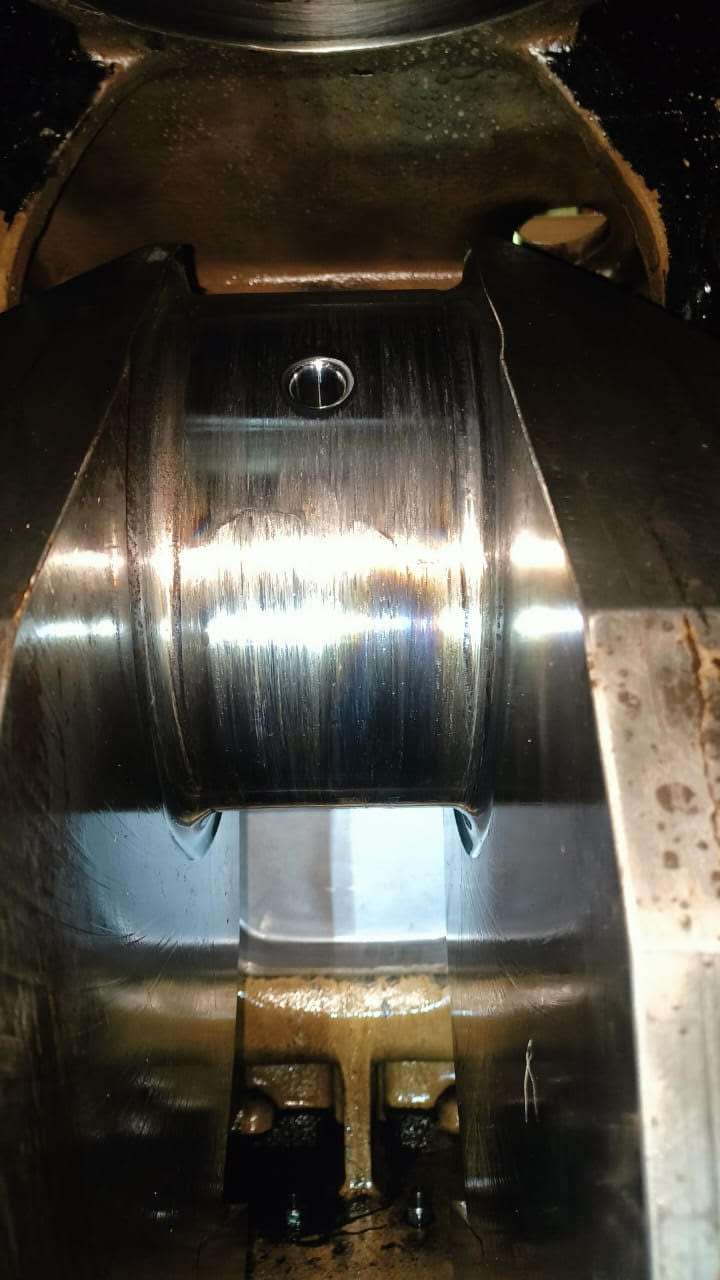

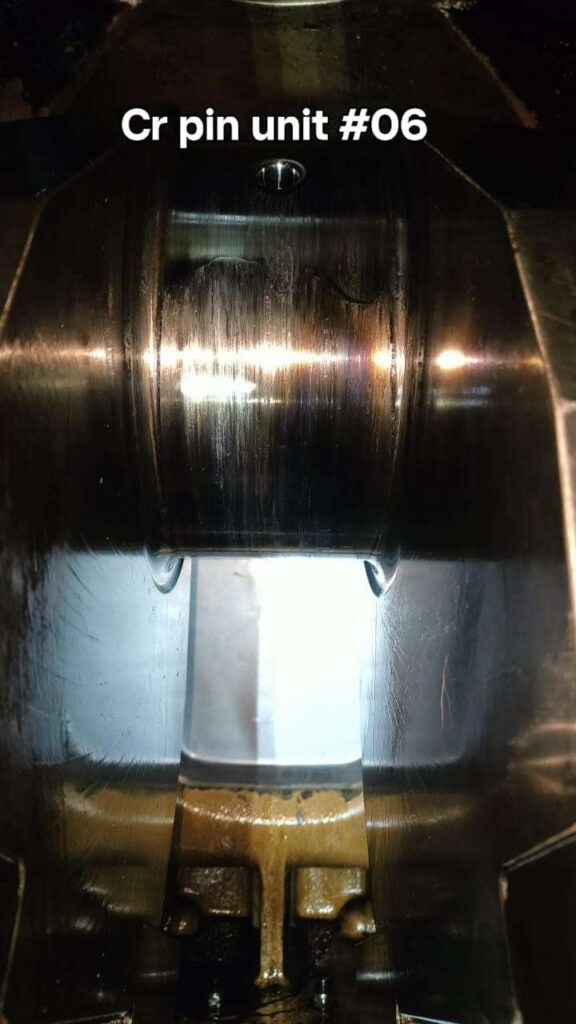

The main observations of crankpin number #06 of Rolls-Royce (Bergen B32:40L8P) are as follows:
i) Minimum Diameter of Crankpin Number #06 – 268.57 MM
ii) Maximum Diameter of Crankpin Number #06 – 270.00 MM
Ovality—1.43 MM

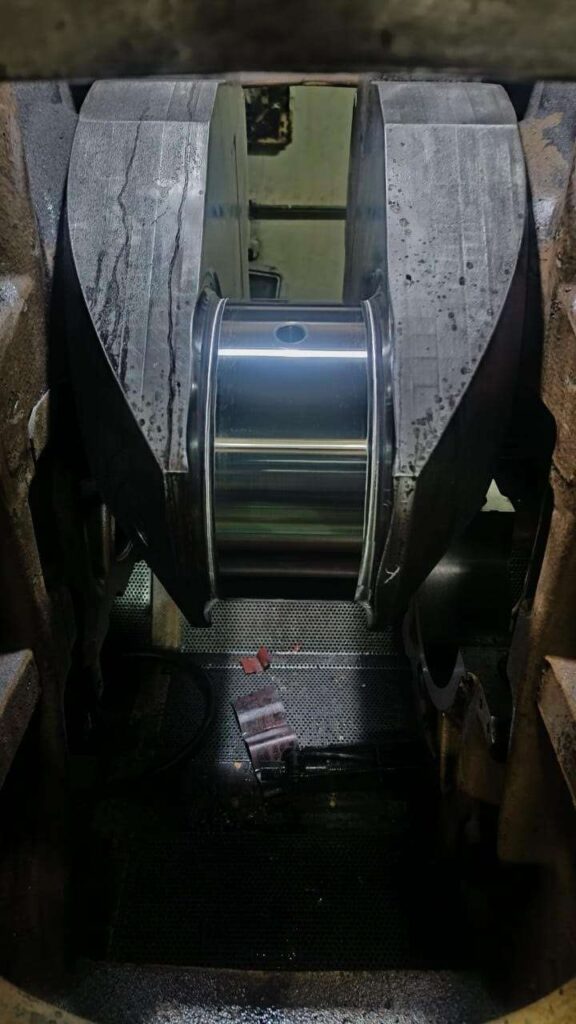

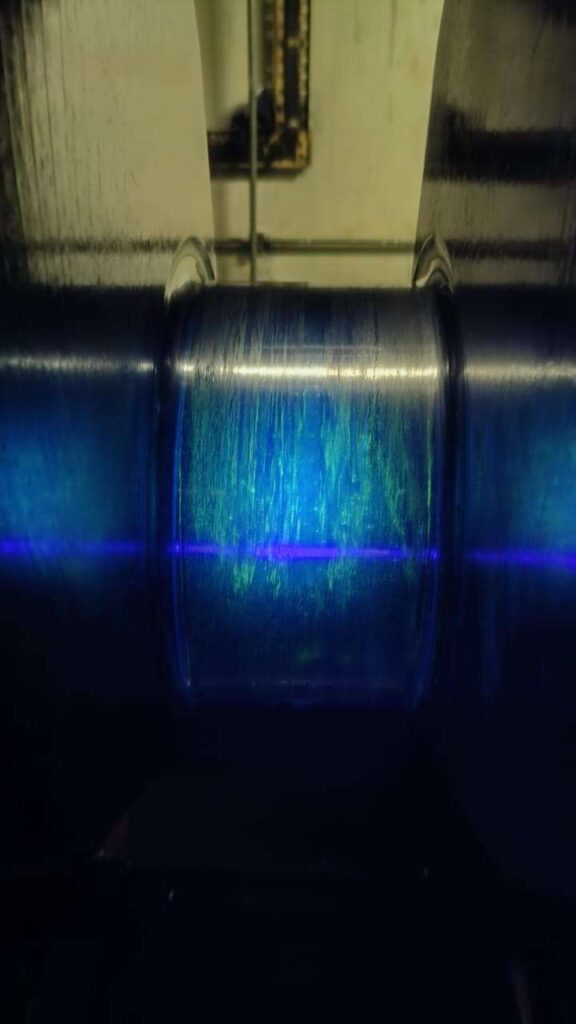

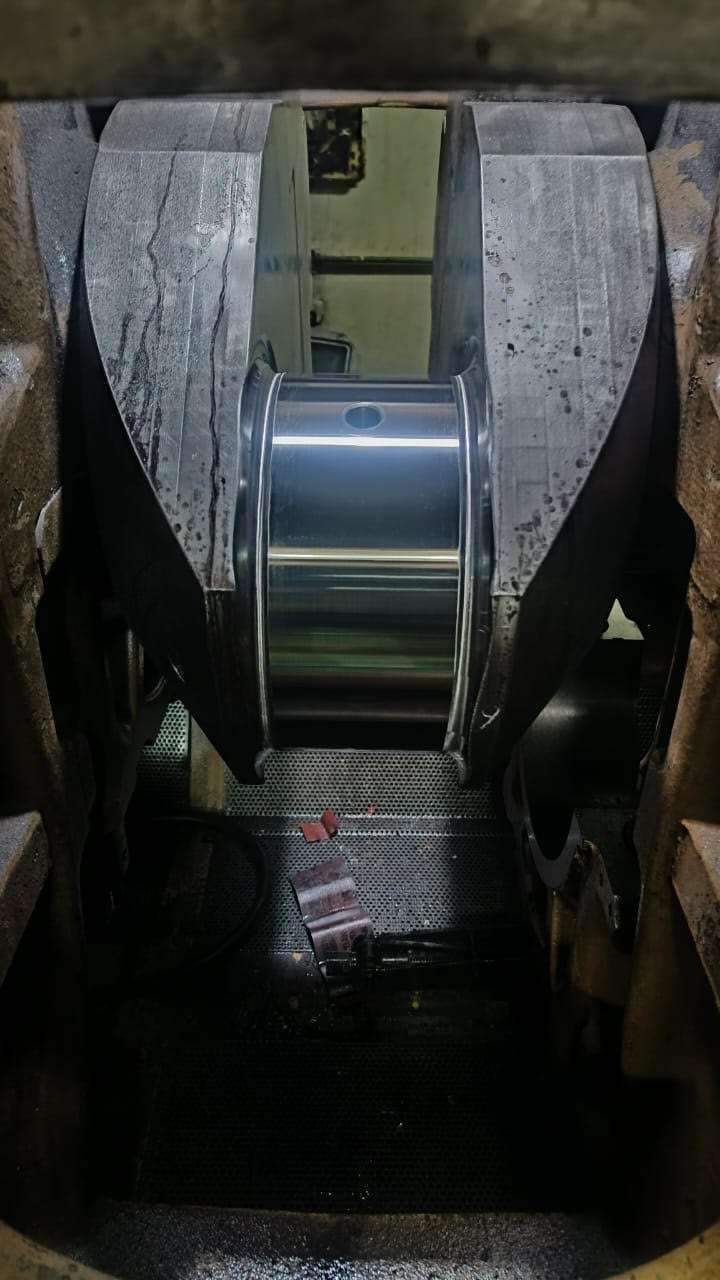

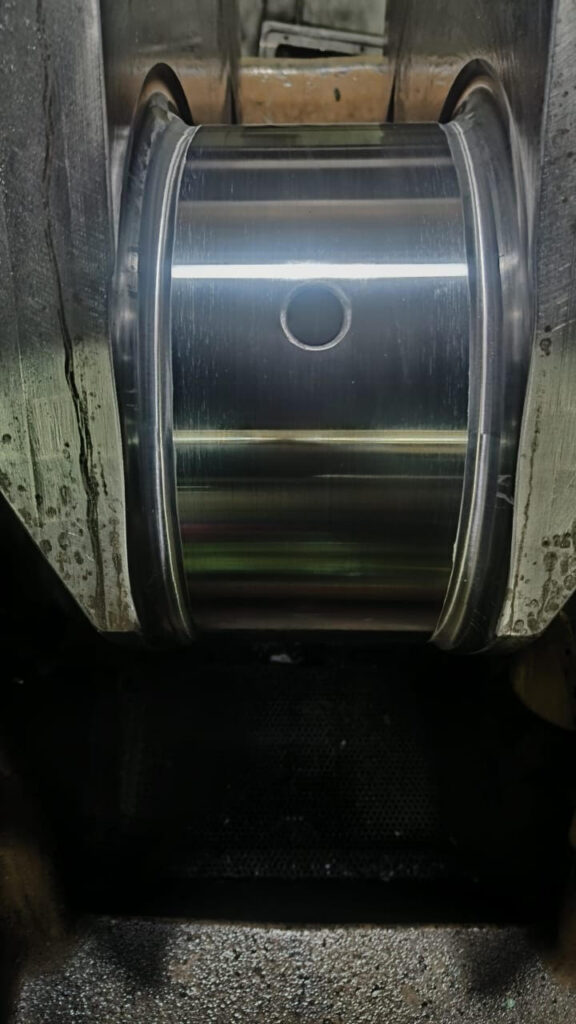

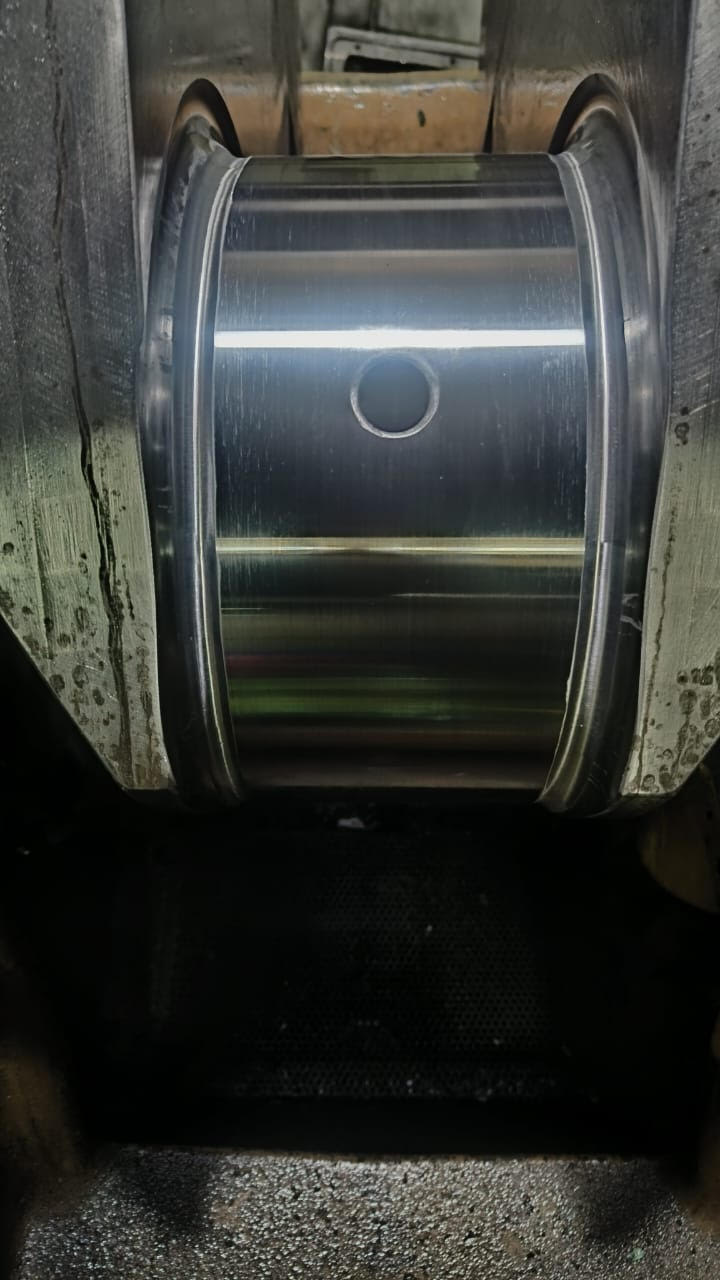

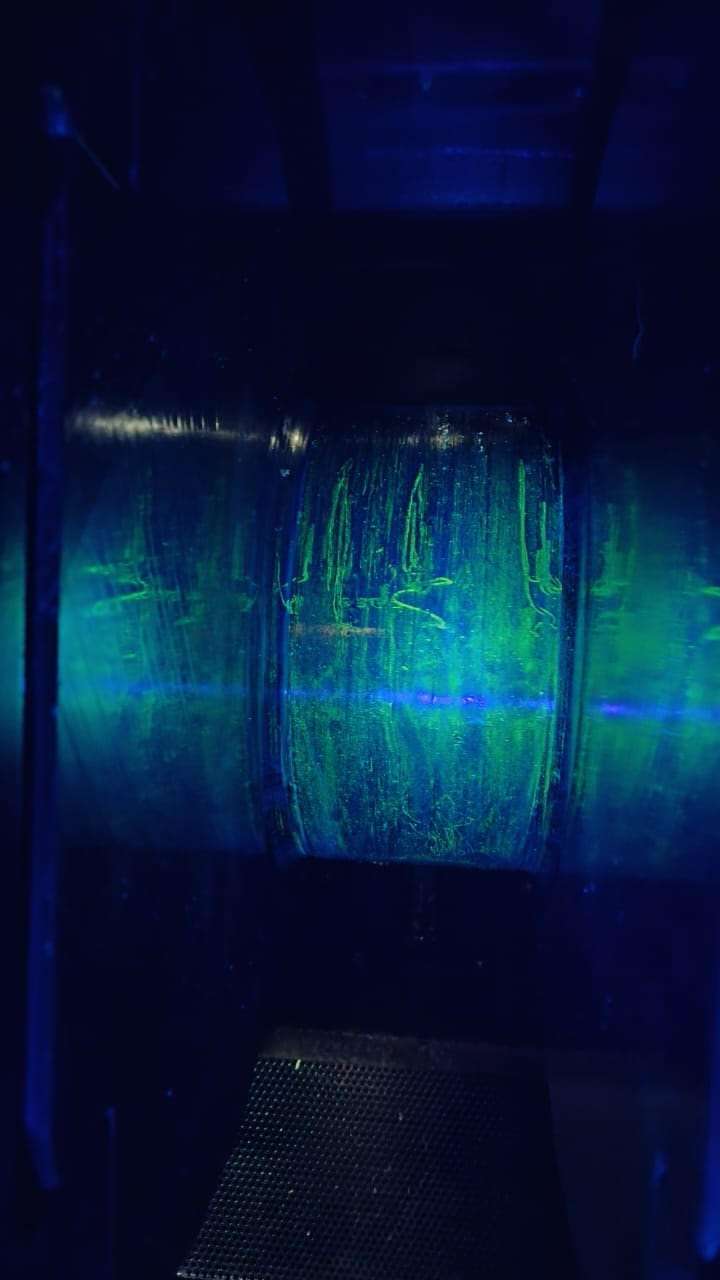

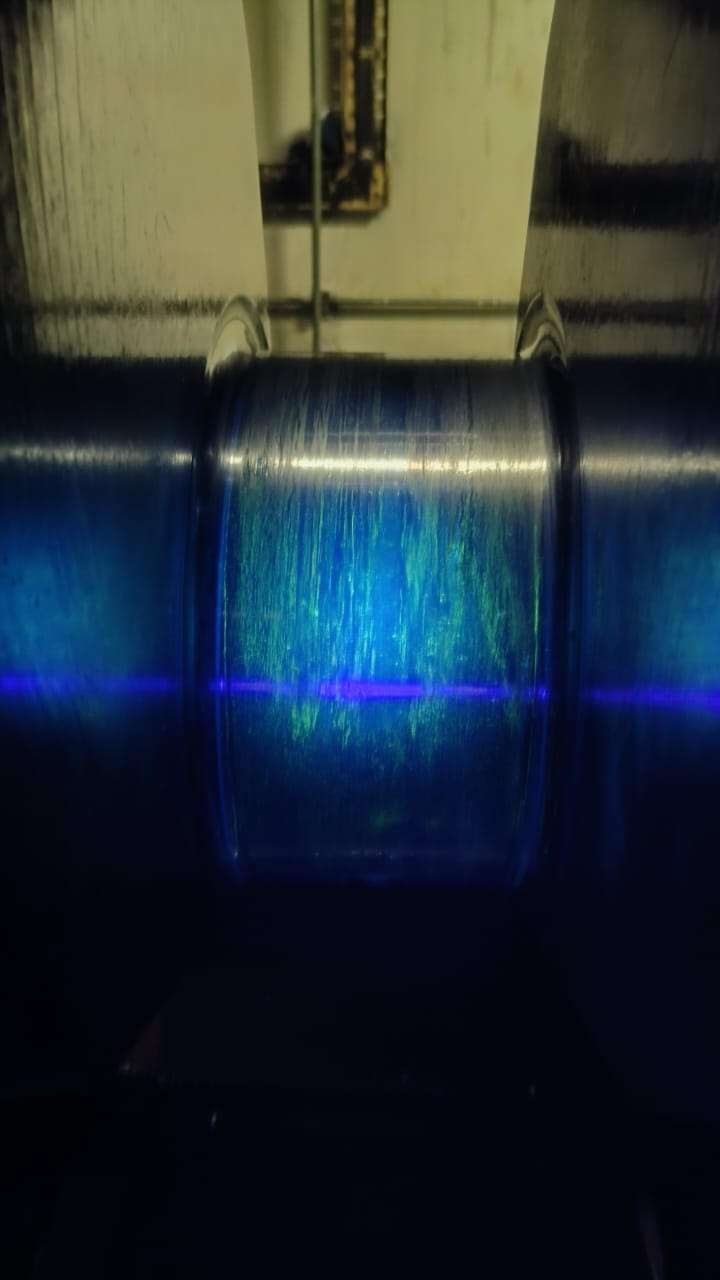

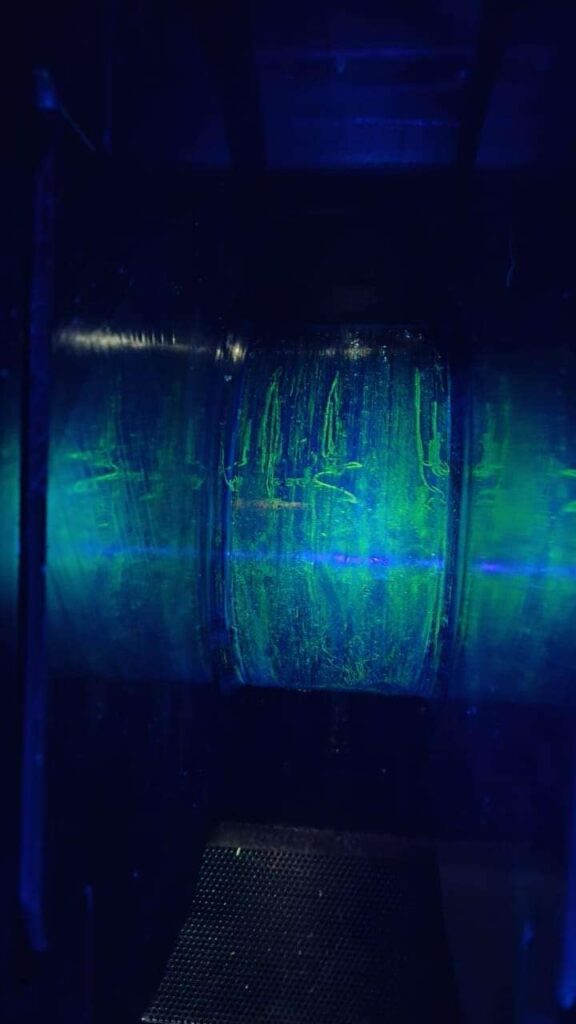

In the MPI test, hairline cracks were also observed. RA Power Solutions technicians executed the repairs by grinding the crankpin number #06 undersized by 2.00 mm. The bearing was available onboard the vessel, and the engine was commissioned in a very short time.
RA Power Solutions offers on-site crankshaft grinding and repair services under a wide range of conditions, whether on a vessel at sea or at a power plant/cement plant in a remote location. All crankshaft grinding services provided by RA Power Solutions are guaranteed to ensure the crankshaft and diesel engine perform satisfactorily after repairs.
RA Power Solutions has always committed itself to delivering excellent and timely service. With over 46 years of experience, we have successfully repaired more than 10,000 crankshafts worldwide.
Crankpin Bearings In Stock For Rolls-Royce Bergen B32:40L8P Engine
RA Power Solutions has a ready stock of crankpin bearings for the Rolls-Royce Bergen B32:40L8P engine to meet urgent replacement requirements during on-site crankshaft repair and grinding. Standard and undersized crankpin bearings are available for immediate dispatch to assist vessel owners and operators in minimising downtime and getting the engine back to full power as soon as possible. Our crankshaft grinding expertise, combined with authentic crankpin bearings, means faster repair execution and complete compliance with OEM specifications after crankshaft restoration.
For more information on onsite crankshaft repair, crankshaft grinding, and crankshaft polishing, please email us at rajshahani@rapowersolutions.com or info@rapowersolutions.com, or call us at +91 9582647131 or +91 9810012383.
